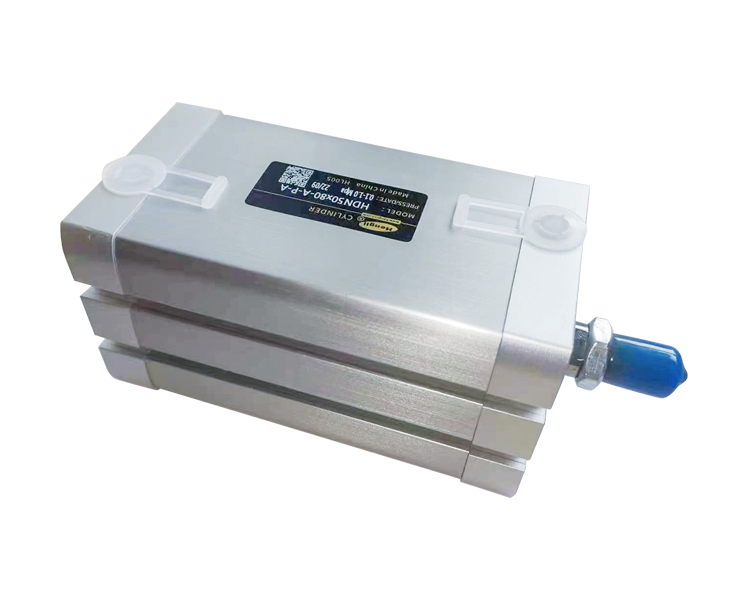

DPSC series compact cylinder

Cylinder diameter: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100

Product characteristics ? Compact structure, can effectively save installation space
? Equipped with self-regulating pneumatic buffer
? Sensor slots on three sides for flush installation of magnetic switches
? A variety of fixed and non-fixed brackets are available for customer choice

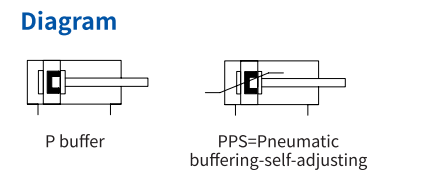

Functional symbol

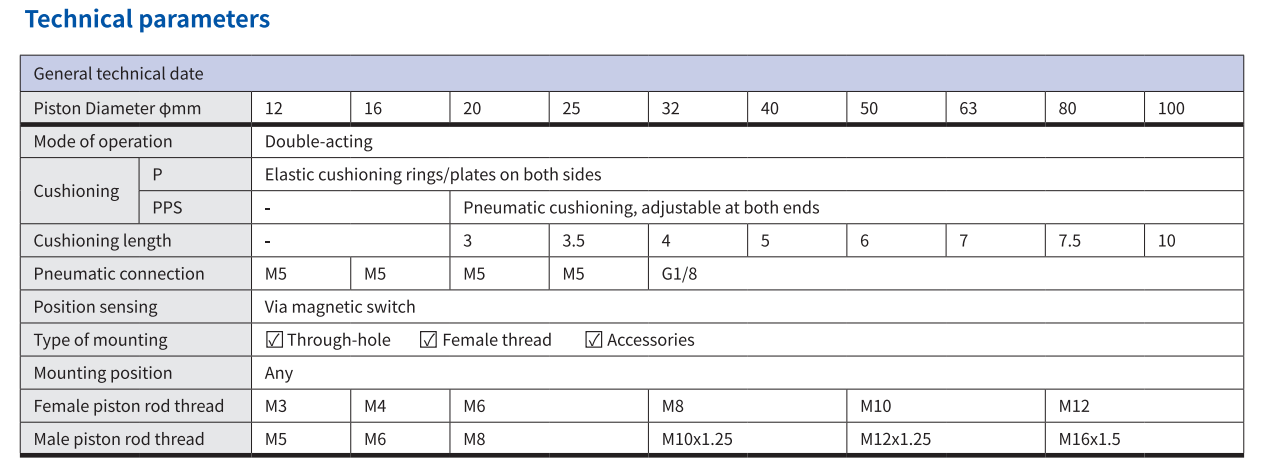

Product specification

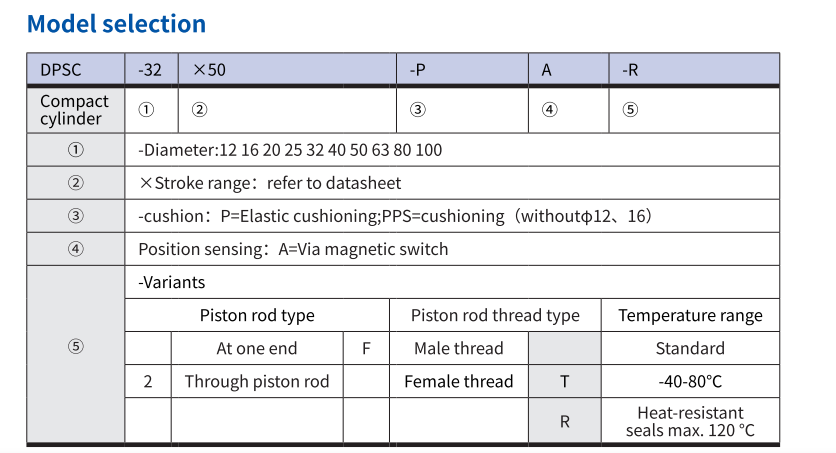

Order code
Installation and use






    Installation and Use

    1. When there are changes in load during work, cylinders with sufficient output force should be selected;

    2. Under high temperature or corrosive conditions, corresponding high-temperature or corrosion-resistant cylinders should be selected;

    3. In places with high humidity, high dust, or water droplets, oil dust, or welding slag, corresponding protective measures should be taken for the cylinder;

    4. Before connecting the cylinder to the pipeline, the dirt inside the pipeline must be removed to prevent dust and other debris from entering the cylinder;

    5. The medium used in the cylinder should be filtered with a filter element of over 40um before use;

    6. Due to the short front cover and piston of the cylinder, the general stroke should not be too large;

    7. In low temperature environments, anti freezing measures should be taken to prevent moisture freezing in the system;

    8. During the working process, the cylinder should avoid being subjected to lateral loads as much as possible to maintain its normal operation and service life;

    9. If the cylinder is removed and not used for a long time, attention should be paid to surface rust prevention, and dust blocking caps should be added to the intake and exhaust ports. Special attention should be paid: the front and rear covers cannot be disassembled by themselves;

    10. Installation and disassembly of C-type buckle:

    10.1. When assembling and disassembling, it is necessary to use suitable pliers (C-type buckle installation tool) to ensure safety and avoid damage to the human body or surrounding machines caused by the C-type buckle flying out;

    10.2. Ensure that the C-type retaining ring is installed in the groove of the body retaining ring before ventilation.



    安裝與使用
    1、 工作中負載有變化時,應選用輸出力充裕的氣缸;
    2、 在高溫或者腐蝕性條件下,應選用相應的耐高溫或耐腐蝕性氣缸;
    3、 在濕度大,粉塵多,或者有水滴、油塵、焊渣的場合,氣缸應采取相應的防護措施;
    4、 氣缸接入管道前,必須清除管道內臟物,防止粉塵等雜物進入氣缸內;
    5、 氣缸使用介質應經過40um以上濾芯過濾后方可使用;
    6、 因氣缸前蓋及活塞均較短,一般行程不可選擇太大;
    7、在低溫環境下,應采取抗凍措施,防止系統中的水分凍結;
    8、氣缸在工作過程中應盡可能避免受側向載荷,以維持氣缸的正常工作和使用壽命;
    9、氣缸拆下長時間不使用,要注意表面防銹,進排氣口應加防塵堵塞帽, 特別注意:前、后蓋不可自行拆卸;
    10、C型扣環的裝拆:
    10.1、裝拆時一定要使用合適的手鉗(C型扣環安裝工具)進行,確保安全, 避免因C型扣環飛出,對人體或周邊機器造成損害;
    10.2、確保C型扣環裝入本體扣環溝槽后,方可通氣。
