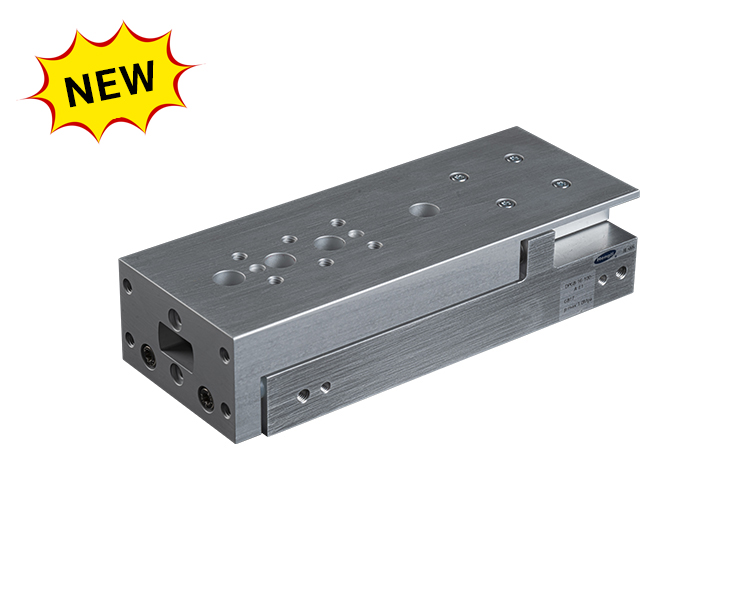

DPGB small slide cylinder

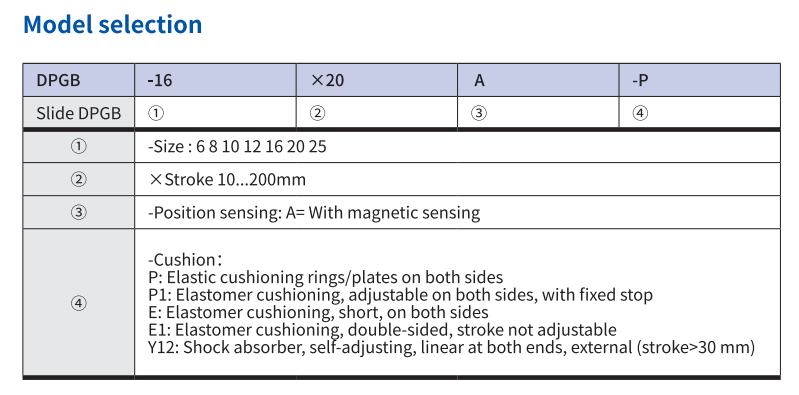

Cylinder diameter: 6,8,10, 12, 16, 20, 25

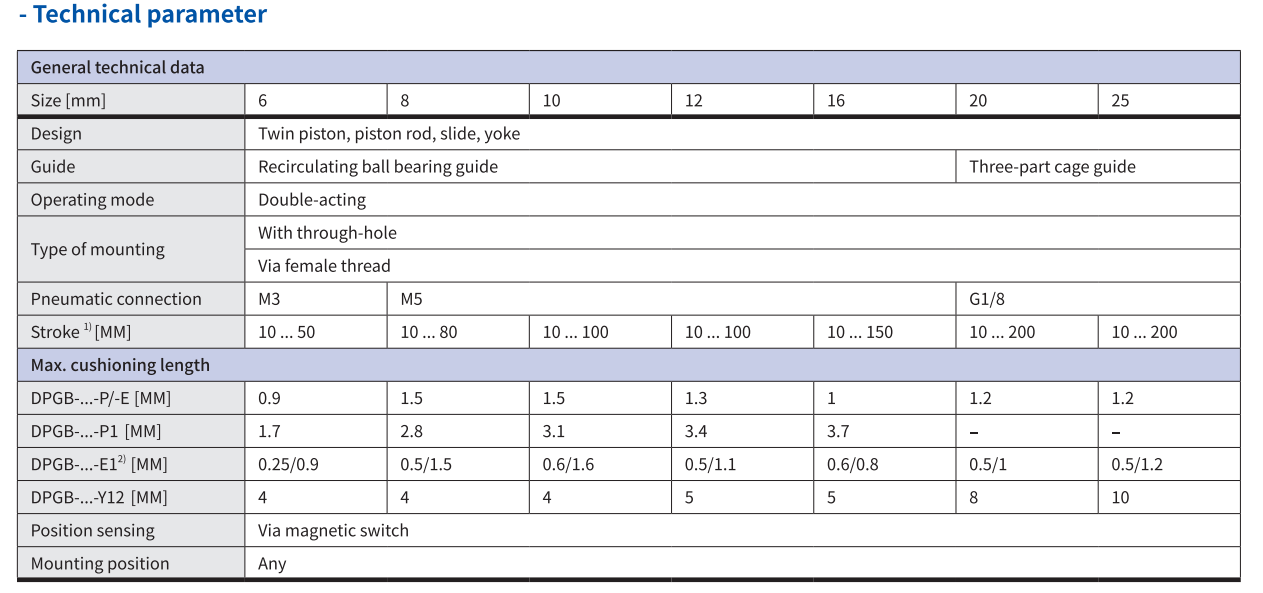

? Compact structure, large feed force
? Simple structure with symmetrical mounting interface
Installation and Use
1. When there are changes in load during work, cylinders with sufficient output force should be selected;
2. Under high temperature or corrosive conditions, corresponding high-temperature or corrosion-resistant cylinders should be selected;
3. In places with high humidity, high dust, or water droplets, oil dust, or welding slag, corresponding protective measures should be taken for the cylinder;
4. Before connecting the cylinder to the pipeline, the dirt inside the pipeline must be removed to prevent dust and other debris from entering the cylinder;
5. The medium used in the cylinder should be filtered with a filter element of over 40um before use;
6. Due to the short front cover and piston of the cylinder, the general stroke should not be too large;
7. In low temperature environments, anti freezing measures should be taken to prevent moisture freezing in the system;
8. During the working process, the cylinder should avoid being subjected to lateral loads as much as possible to maintain its normal operation and service life;
9. If the cylinder is removed and not used for a long time, attention should be paid to surface rust prevention, and dust blocking caps should be added to the intake and exhaust ports. Special attention should be paid: the front and rear covers cannot be disassembled by themselves;
10. Installation and disassembly of C-type buckle:
10.1. When assembling and disassembling, it is necessary to use suitable pliers (C-type buckle installation tool) to ensure safety and avoid damage to the human body or surrounding machines caused by the C-type buckle flying out;
10.2. Ensure that the C-type retaining ring is installed in the groove of the body retaining ring before ventilation.
安裝與使用
1、 工作中負載有變化時,應選用輸出力充裕的氣缸;
2、 在高溫或者腐蝕性條件下,應選用相應的耐高溫或耐腐蝕性氣缸;
3、 在濕度大,粉塵多,或者有水滴、油塵、焊渣的場合,氣缸應采取相應的防護措施;
4、 氣缸接入管道前,必須清除管道內臟物,防止粉塵等雜物進入氣缸內;
5、 氣缸使用介質應經過40um以上濾芯過濾后方可使用;
6、 因氣缸前蓋及活塞均較短,一般行程不可選擇太大;
7、在低溫環境下,應采取抗凍措施,防止系統中的水分凍結;
8、氣缸在工作過程中應盡可能避免受側向載荷,以維持氣缸的正常工作和使用壽命;
9、氣缸拆下長時間不使用,要注意表面防銹,進排氣口應加防塵堵塞帽, 特別注意:前、后蓋不可自行拆卸;
10、C型扣環的裝拆:
10.1、裝拆時一定要使用合適的手鉗(C型扣環安裝工具)進行,確保安全, 避免因C型扣環飛出,對人體或周邊機器造成損害;
10.2、確保C型扣環裝入本體扣環溝槽后,方可通氣。
