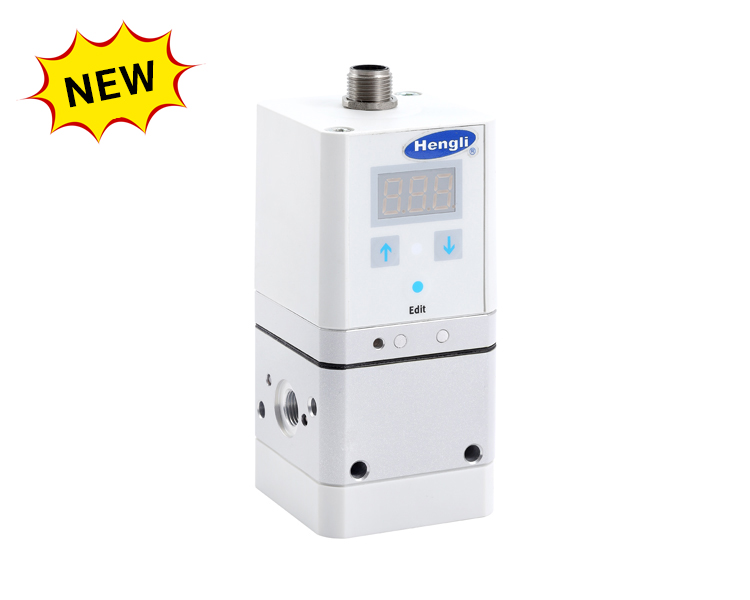

Proportional pressure regulating valve VPPA
? Excellent dynamic response
? Compatible with common communication protocols
? Long service life

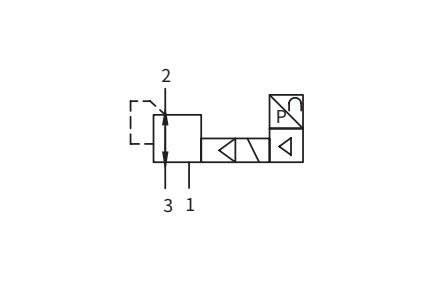

Gas interface 1, 2, 3 | G1/8 | |
Structure features, valve function | Pilot diaphragm type pressure reducing valve, three-way proportional pressure regulating valve | |
Safety function Remarks | Safe positionVPPA | |
Sealing principle | Soft seal | |
Driving mode | Electric drive | |
Control mode | Pilot control via two position two way valve | |
Installation mode | Through hole | |
Installation position | Any, preferably placed vertically | |
Nominal diameter | Exhaust port [mm] | 5 |
Air intake [mm] | 2.5 | |
Standard rated flow | See table below |
Electrical interface | Plug, round, 5 pin, M12×1 | |
Operating voltage range [V DC] | 21.6...26.4 | |
Operating voltage indication | LED | |
Afterwave [%] | 10 | |
Maximum power consumption [W] | 4.2 | |
Maximum current loss [mA] | 160 | |
Signal range for analog input/output | Voltage [V DC | 0...10 |
Current[mA] | 4...20 | |
Short-circuit protection/polarity fault-tolerant protection | Applicable to all electrical interfaces | |
Switch output | PNP | |
Protection class | IP65 |
VPPA | 3 | 1 | 1/8 | 2 | 005 | |
Proportional pressure control valve | ① | ② | ③ | ④ | ⑤ | |
① | Valve function | 3= three-way valve | ||||
② | Valve function | 1= Normally closed | ||||
③ | Air coupling | 1/8-= Internal thread G1/8 | ||||
④ | Pressure adjustment range | 2=0.02...2bar;6=0.06 ... 6 bar;10=0.1 ... 10 bar | ||||
⑤ | Set value input for a single valve | 005=0 ... 5 V;010=0 ... 10 V;420=4 ... 20 mA |
