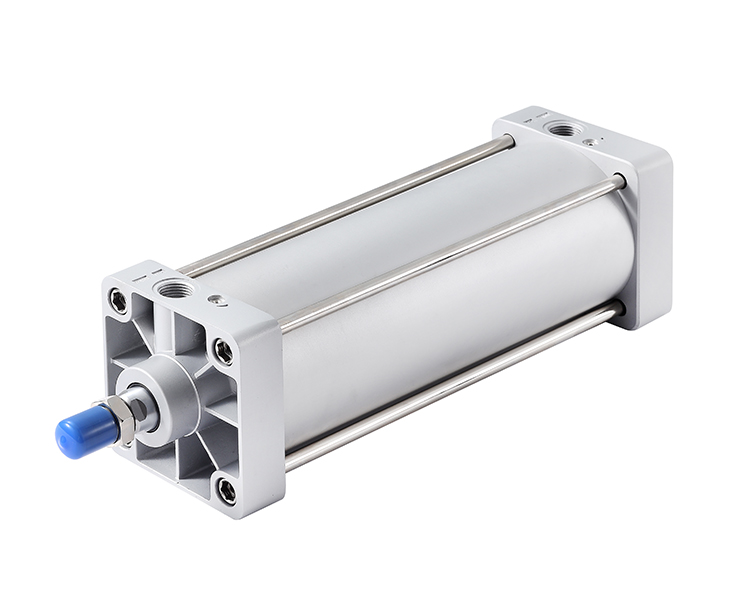

HSC series cylinders

Product characteristics ? Piston seal adopts special shape bidirectional sealing structure, compact size and oil storage function
? Smooth adjustment of cylinder buffer
? High temperature sealing material, operating temperature range 0~150℃
? Optional induction magnet, easy to install magnetic switch flexible

Online message

File download

PDF

Functional symbol

Product specification

Order code

Installation and use

Inside diameter（mm）	32	40	50	63	80	100
Mode of action	Double action
Working medium	Air (filtered by 40μm or more)
Fixed form	HSC	Basic variant FA FB CA CB LB TC TCM1
	HSCD、HSCJ	Basic variant FA LB TC TCM1
Service pressure range	0.15~1.0MPa（22~145psi）（1.5~10.0bar）
Guarantee pressure resistance	1.5MPa（215psi）（15bar）
Operating temperature ℃	-20~70
Use speed range mm/s	30~800
Travel tolerance range	0~250 ^+1.0₀ 251~1000^+1.5₀1001~1500^+2.0 ₀
Buffer form	Adjustable buffer
Buffer stroke	21				28	29
Nozzle diameter	PT1/8	PT1/4		PT3/8		PT1/2

[Note 1] The nozzle type has PT teeth and G teeth

Inner diameter (mm)	125	160	200	250
Mode of action	Double action
Working medium	Air (filtered by 40μm or more)
Fixed form	HSC	Basic model FA FB CA CB LB TC
	HSCD、HSCJ	Basic model FA LB TC
Service pressure range	0.15~1.0MPa（22~145psi）（1.5~10.0bar）
Guarantee pressure resistance	1.5MPa（215psi）（15bar）
Operating temperature ℃	-20~70
Use speed range mm/s	30~500
Travel tolerance range	0~250 ^+1.0₀ 251~1000^+1.5₀1001~1500^+2.0 ₀
Buffer form	Adjustable buffer
Buffer stroke	28	29	33	40
Nozzle diameter	PT1/2	PT3/4		PT1

[Note 1] The nozzle type has PT teeth and G teeth

HSC	-	-50	×S	-PPV	-A	-20	-	-	-
Cylinder	①	②	③	④	⑤	⑥	⑦	⑧	⑧
①	Specification code	- : Standard double action
		D: Double axis type
		J: Double axis variable stroke type
②	Cylinder diameter	32 40 50 63 80 100
③	Journey	See itinerary
④	Buffer form	Adjustable buffer
⑤	Position sensing	- : No magnetic switch
		A: With magnetic switch
⑥	Adjustment stroke	Only HSCJ has this code 10 20 30 40 50 75 100
⑦	Fixed form	HSC	- 　LB　FA　FB　CA　CB　TC
		HSCD、HSCJ	-　LB　FA　TC
⑧	Seal material	H: Fluorine rubber
		N：NBR
⑧	Tooth profile code	- : PT teeth
		G: G tooth

HSC	-	-125	×S	-PPV	-A	-	-
Air cylinder	①	②	③	④	⑤	⑥	⑦
①	Specification code	- : Standard double action
		D: Double axis type
		J: Double axis variable stroke type
②	Bore	125 160 200 250
③	Journey	See itinerary
④	Buffer form	Activate the adjustable buffer
⑤	Magnetic sensing	- : No magnetic switch
		A: With magnetic switch
⑥	Fixed form	HSC	- 　LB　FA　FB　CA　CB　TC
		HSCD、HSCJ	-　LB　FA　TC
⑦	Seal material	-:NBR, H: fluorine rubber
