H4V series solenoid valve

Product characteristics ? The three-position solenoid valve has three central functions to choose from;
? Double-head two-position solenoid valve with memory function;
? The inner hole is processed by special technology, with low friction resistance, low starting pressure and long service life;
? Equipped with manual device, easy to install and debug;
? A variety of standard voltage levels are available.

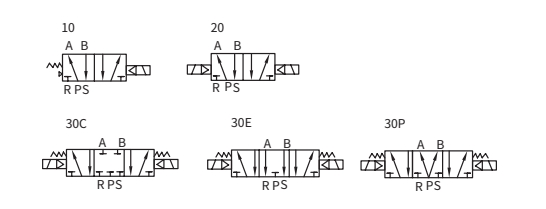

Functional symbol
Product specification
Order code
Installation and use


    Model number

    H4V110-M5

    H4V120-M5

    H4V130C-M5
    H4V130P-M5
    H4V130E-M5
    H4V110-06
    H4V120-06
    H4V130C-06
    H4V130E-06
    H4V130P-06
    Working mediumAir (filtered by 40μm or more)
    Actuating modeInternal guide or external guide
    Nozzle diameter[Note 1]Inlet air = outlet air =M5Inlet air = outlet air =PT1/8
    Effective cross-sectional area (CV)[Note 4]H4V110-06,H4V120-06:10.2mm2(Cv=0.6)
    H4V130C-06:8.6mm2(Cv=0.51)
    Place numberTwo persons and five personsThree persons and five sensesTwo persons and five personsThree persons and five senses
    Service pressure range0.15~0.8MPa(21~114psi)
    Guarantee pressure resistance1.2MPa(175psi)
    Operating temperature-20~70℃
    Body materialAluminium alloy
    oiling[Note 2]It isn't necessary
    Maximum operating frequency[Note 3]5 times per second3 times per second5 times per second3 times per second
    Weight (g)H4V110-M5:120
    H4V120-M5:175
    200H4V110-06:120
    H4V120-06:175
    200
    Model numberH4V210-06
    H4V220-06
    H4V230C-06
    H4V230E-06
    H4V230P-06
    H4V210-08
    H4V220-08
    H4V230C-08
    H4V230E-08
    H4V230P-08
    Working mediumAir (filtered by 40μm or more)
    Actuating modeInternal guide or external guide
    Nozzle diameter[Note 1]Intake = outlet = exhaust =PT1/8Intake = Outlet =PT1/4 Exhaust =PT1/8
    Effective cross-sectional area (CV)[Note 4]H4V210-08,H4V220-08:17.0mm2(Cv=1.0)
    H4V230C-08:13.6mm2(Cv=0.8)
    Place numberTwo persons and five personsThree persons and five sensesTwo persons and five personsThree persons and five senses
    Service pressure range0.15~0.8MPa(21~114psi)
    Guarantee pressure resistance1.2MPa(175psi)
    Operating temperature-20~70℃
    Body materialAluminium alloy
    lubrication[Note 2]It isn't necessary
    Maximum operating frequency[Note 3]5 times per second3 times per second5 times per second3 times per second
    Weight (g)H4V210-06:220
    H4V220-06:320
    360H4V210-08:220
    H4V220-08:320
    360
    Model numberH4V310-08
    H4V320-08
    H4V330C-08
    H4V330E-08
    H4V330P-08
    H4V310-10
    H4V320-10
    H4V330C-10
    H4V330E-10
    H4V330P-10
    Working mediumAir (filtered by 40μm or more)
    Actuating modeInternal guide or external guide
    Nozzle diameter
    [Note 1]
    Intake = outlet = exhaust =PT1/4Inlet = Outlet =PT3/8 Exhaust =PT1/4
    Effective cross-sectional area (CV)
    [Note 4]
    H4V310-10,H4V320-10:28.0mm2(Cv=1.65)
    H4V330C-10:21.3mm2(Cv=1.25)
    Number of positionsTwo persons and five personsThree persons and five sensesTwo persons and five personsThree persons and five senses
    Service pressure range0.15~0.8MPa(21~114psi)
    Guarantee pressure resistance1.2MPa(175psi)
    Operating temperature-20~70℃
    Body materialAluminium alloy
    lubrication[Note 2]It isn't necessary
    Maximum operating frequency[Note 3]4 times per second3 times per second4 times per second3 times per second
    Weight (g)H4V310-08:310
    H4V320-08:400
    450H4V310-10:310
    H4V320-10:400
    450
    Model numberH4V410-15 H4V420-15H4V430C-15H4V430E-15H4V430P-15
    Working mediumAir (filtered by 40μm or more)
    Actuating modeInternal guide or external guide
    Nozzle diameter[Note 1]Intake = outlet = exhaust =PT1/2
    Effective cross-sectional area (CV)
    [Note 4]
    H4V410-15,H4V420-15:48.0mm2(Cv=2.82)
    H4V430C-15:40.0mm2(Cv=2.35)
    Number of positionsTwo persons with five connectionsThree persons and five senses
    Service pressure range0.15~0.8MPa(21~114psi)
    Guarantee pressure resistance1.2MPa(175psi)
    Operating temperature-20~70℃
    Body materialAluminium alloy
    lubrication [Note 2]It isn't necessary
    Maximum operating frequency[Note 3]3 times per second
    Weight (g)590720770

    [Note 1] The nozzle type has G teeth and NPT teeth to choose from.

    [Note 2] If there is oil lubrication, do not stop halfway, the recommended lubricating oil is ISO VG32 or the same level of oil.

    [Note 3] The highest operating frequency is no-load.

    [Note 4] Effective cross-sectional area and Cv values are calculated based on test flow data.


    Base type100M200M300M400M
    Working mediumAir (filtered by 40μm or more)
    Operating temperature-20~70℃
    Applicable valve body typeH4V100 seriesH4V200 seriesH4V300 series H4V400 series


    H4V 1106--W
    -① ② ③ ④ ⑤ ⑥
    ① Serial code1100series
    ② Electronic control system10Dual position single electric control20Dual position dual electric control30CThree position dual electric control medium enclosed type30E Three position dual electric control medium exhaust type30P Three position double electric control medium pressure type
    ③ Nozzle diameterM5 M5 061/8
    ④ Standard voltageAC220V DC24V AC110V AC24V DC12V
    ⑤ Connection mode-DIN socket type I Outlet type (note)
    ⑥ Dental code-PT tooth G tooth NPT tooth
    ⑦ Pilot mode-Inner leaderExternal leader
    H4V 2106--W
    -① ② ③ ④ ⑤ ⑥
    ① Serial code2200 series
    ② Electronic control system10Dual position single electric control20Dual position dual electric control30CThree position dual electric control medium enclosed type30E Three position dual electric control medium exhaust type30P Three position double electric control medium pressure type
    ③ Nozzle diameter061/8081/4
    ④ Standard voltageAC220V DC24V AC110V AC24V DC12V
    ⑤ Connection mode-DIN socket type I Outlet type (note)
    ⑥ Dental code-PT tooth Gtooth NPT tooth
    ⑦ Pilot mode-Inner leaderExternal leader
    H4V 3108--W
    -① ② ③ ④ ⑤ ⑥
    ① Serial code3300 series
    ② Electronic control system10Dual position single electric control20Dual position dual electric control30CThree position dual electric control medium enclosed type30E Three position dual electric control medium exhaust type30P Three position double electric control medium pressure type
    ③ Nozzle diameter081/4103/8
    ④ Standard voltageAC220V DC24V AC110V AC24V DC12V
    ⑤ Connection mode-DIN socket type I Outlet type (note)
    ⑥ Dental code-PT tooth G tooth NPT tooth
    ⑦ Pilot mode-Inner leaderExternal leader


    H4V 41015--W
    -① ② ③ ④ ⑤ ⑥
    ① Serial code4400 series
    ② Electronic control system10Dual position single electric control20Dual position dual electric control30CThree position dual electric control medium enclosed type30E Three position dual electric control medium exhaust type30P Three position double electric control medium pressure type
    ③ Nozzle diameter151/2
    ④ Standard voltageAC220V DC24V AC110V AC24V DC12V
    ⑤ Connection mode-DIN socket type I Outlet type (note)
    ⑥ Dental code-PT tooth G tooth NPT tooth
    ⑦ Pilot mode-Inner leaderExternal leader

    Note: The outlet length of the outlet type is 0.5m.


    Base ordering code



    -100M2F-
    -① ② ③
    ① Specification code100M100 series base 200M200 series base 300M300 series base 400M400 series base
    ② Serial number code1F1 even2F2 even...16F16 even
    ③ Nozzle diameterBlankPT tooth GG tooth
    TNPT  tooth

    Blind plate ordering code


    -P100MR2
    -① ② ③
    ① Component codePmodule
    ② Specification code100M100 series base 200M200 series base 300M300 series base 400M400 series base
    ③ Blind plate codeR2Blind plate for base

    [Note] 1, 100M, 200M series connection number to 16; 300M series connection number to 12; The number of 400M series to 8;

    2. The ordering code includes two parts: base and blind plate. Base assembly includes base, base gasket and screw; The blind plate assembly comprises a blind plate and a screw.
