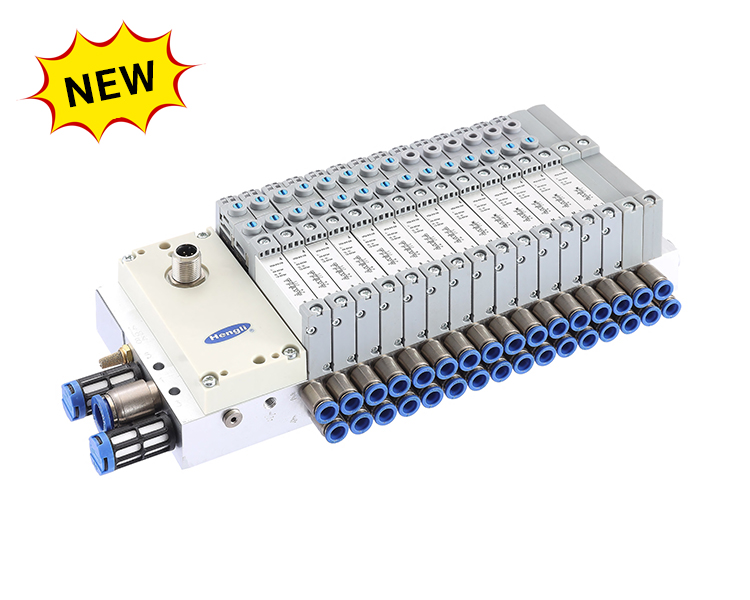

VTSA series valve islands
Specifications 10, 14, 18mm
Product characteristics
? Optional IO-Link interface, Sub-D multi-pin interface
? Optional EtherCAT, ProfiNet/IP and other fieldbus interfaces
? By replacing the electrical control box, Different electrical connections can be realized
? IO-Link with fault diagnosis function
? Optional quick-insert connector
? Multiple pressure zones can be realized
? Internal or external pilot air source can be realized in the same air path plate by using short and short plugs
? Manual operation mode, Push-button with lock
? Plate and half-tube valves optional
? Plate valves with working air ports at the bottom can be used for control cabinet installation
? Reduce assembly and installation time
? Easy to install by using its own screws and seals
? Easy to change the connection mode
? LED display for quick troubleshooting
? Optional EtherCAT, ProfiNet/IP and other fieldbus interfaces
? By replacing the electrical control box, Different electrical connections can be realized
? IO-Link with fault diagnosis function
? Optional quick-insert connector
? Multiple pressure zones can be realized
? Internal or external pilot air source can be realized in the same air path plate by using short and short plugs
? Manual operation mode, Push-button with lock
? Plate and half-tube valves optional
? Plate valves with working air ports at the bottom can be used for control cabinet installation
? Reduce assembly and installation time
? Easy to install by using its own screws and seals
? Easy to change the connection mode
? LED display for quick troubleshooting
